Foam profiles

DESCRIPTION OF FOAM PROFILES

Made of expanded polyethylene foam, a flexible, light and resistant material. Foam profiles with elastic memory that makes them excellent shock absorbers.

Generally in 2 mts bars packed in boxes of 0.6*0.5 and 2 mts long.

Wide range of standardized and ready-to-use profiles:

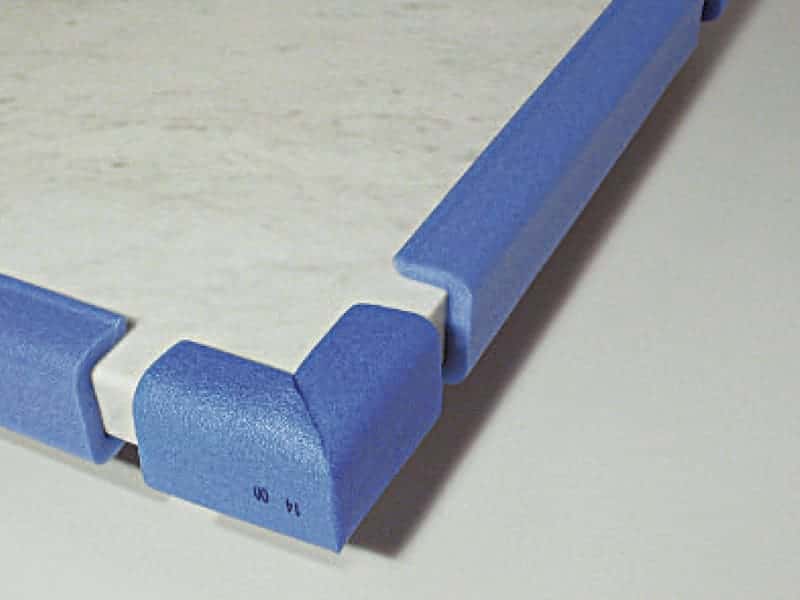

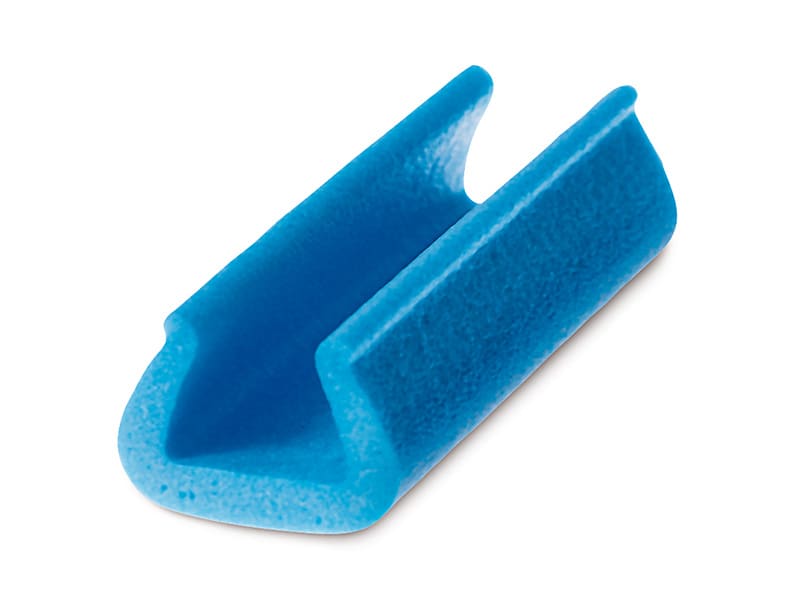

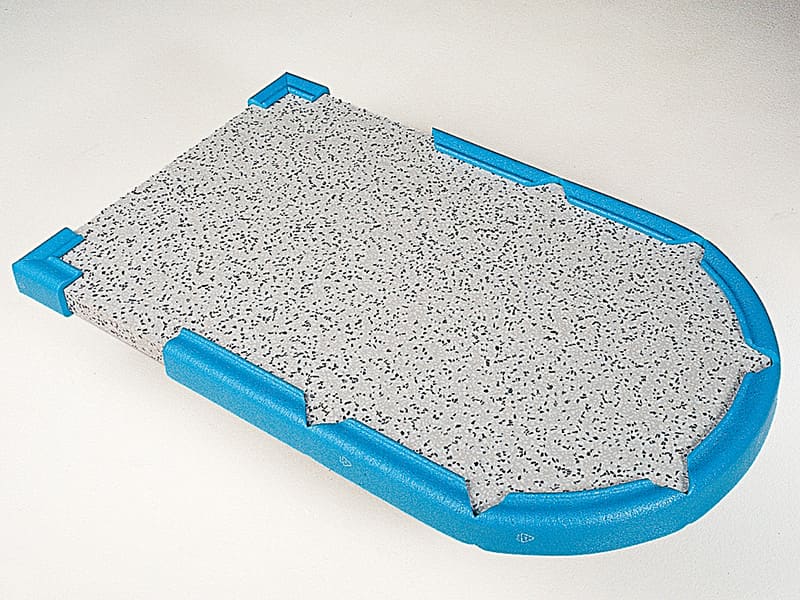

  • U-profiles.

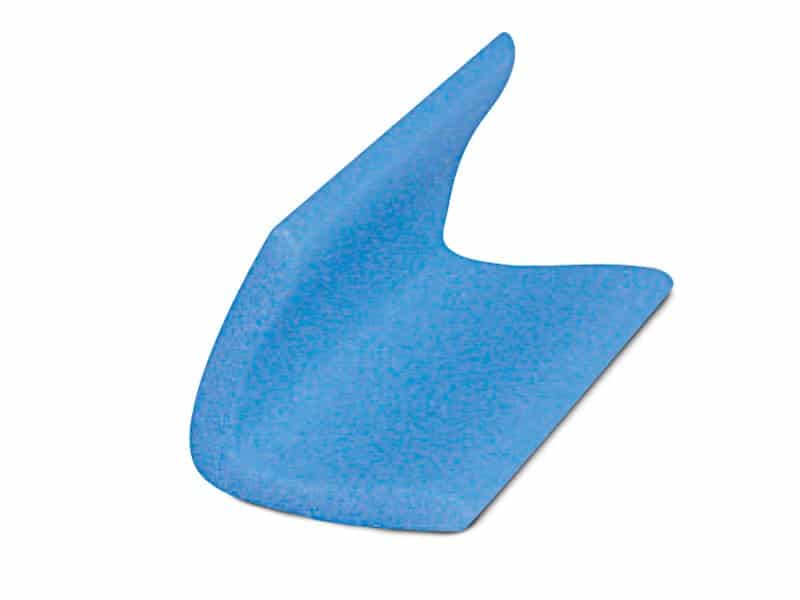

  • L-profiles, with and without fins.
  • Omega profiles.
  • Round profiles.

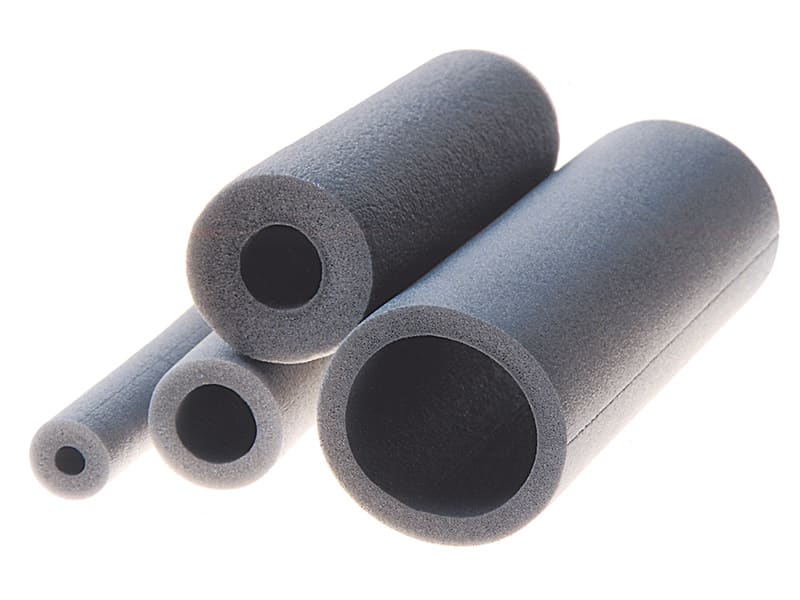

  • O-profiles.
  • Rectangular, cylindrical or square section bars.
  • High protection profiles similar to nomapack with wall thicknesses of 30 and 40 mm.

BENEFITS OF FOAM PROFILES

  • Adaptable to different thicknesses thanks to its flexibility and wide range.
  • The wide range of standardized articles allows us to reduce the thickness of the foam corner pieces and therefore reduce transportation costs.
  • Minimizes breakage.

PROPERTIES OF FOAM PROFILES

All products in this category are resistant to atmospheric agents and chlorine salts, while having a very low percentage of water absorption. In addition, the entire product range is recyclable, non-toxic and CFC-free.

Excellent shock and vibration absorption with high recovery against possible impacts.

It is resistant to atmospheric agents and chlorine salts, while having a very low percentage of water absorption. Recyclable protection profile. Null toxicity. Does not contain CFCs.

APPLICATIONS OF FOAM PROFILES

  • Ideal for furniture packaging
Producto para embalaje Protección angular espuma polietileno expandido 2
embalaje perfil de espuma en L 1

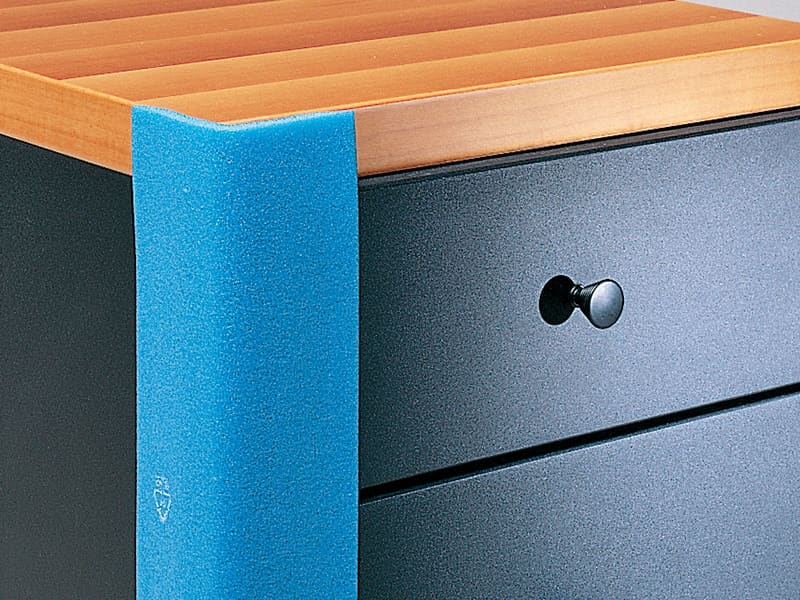

embalaje perfil espuma en L 2

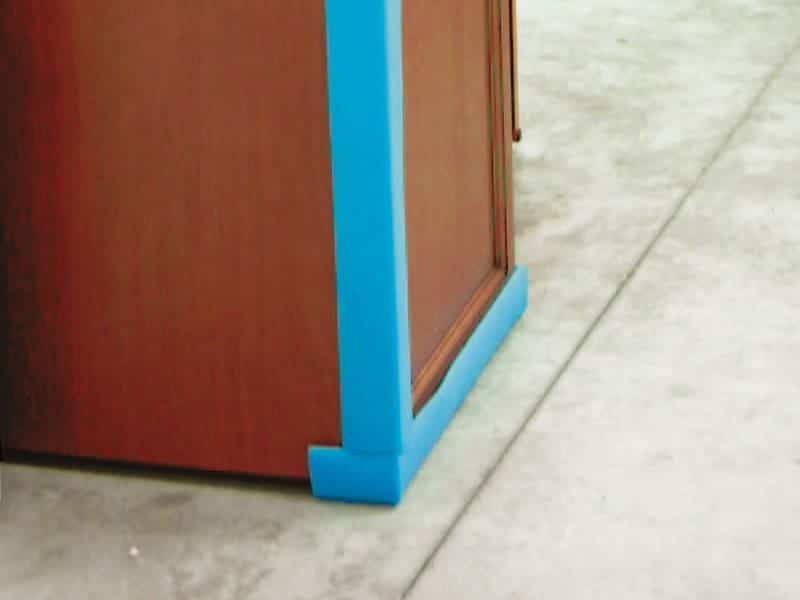

embalaje perfil espuma en L 3

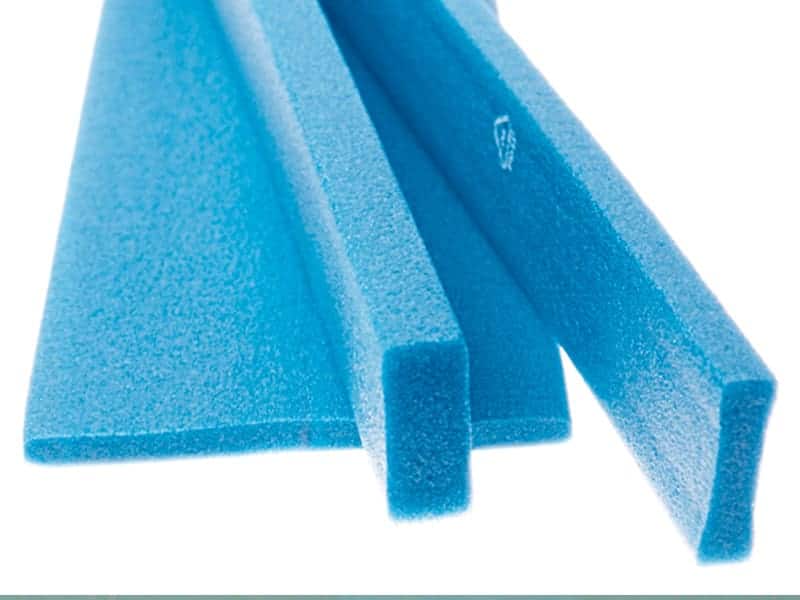

embalaje perfil espuma rectangular 4

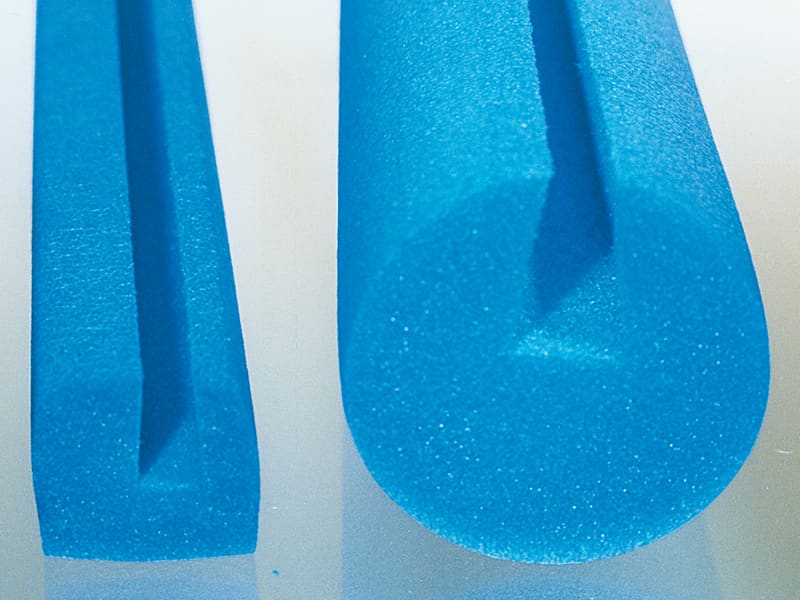

embalaje perfil espuma redondo 1
embalaje perfil espuma redondo 2

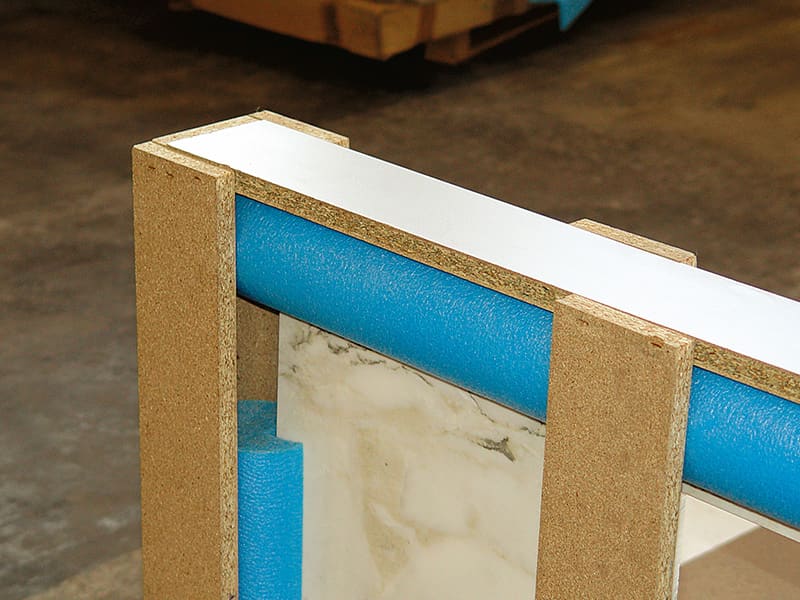

embalaje perfil espuma redondo 3

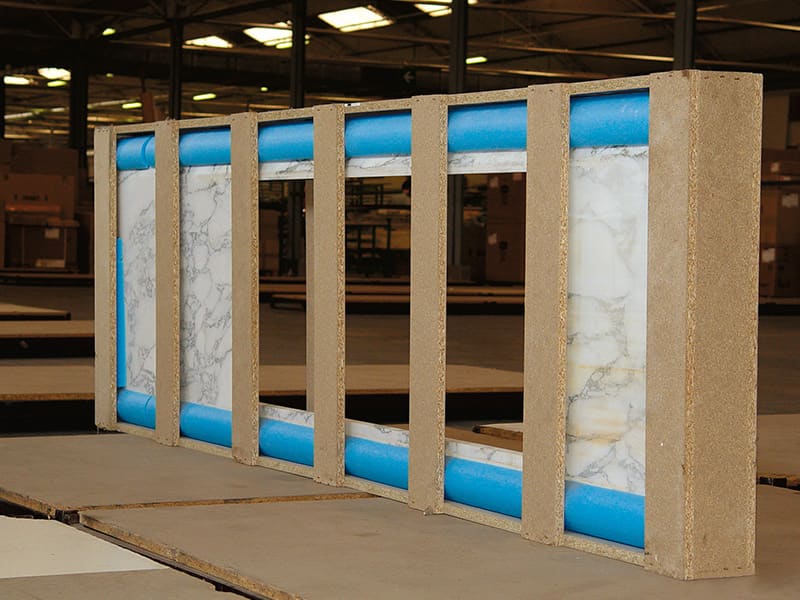

embalaje perfil espuma redondo 4

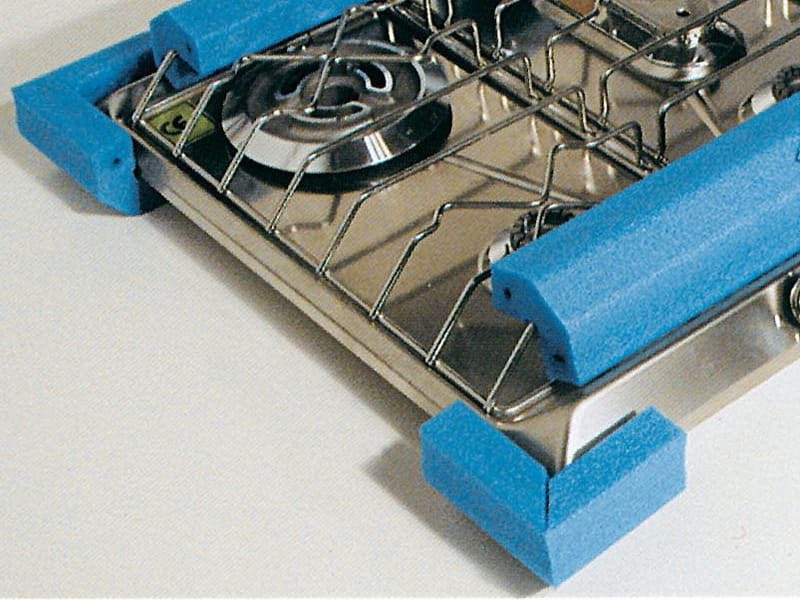

embalaje perfil espuma system 1
embalaje perfil espuma system 2
embalaje perfil espuma tubular 1

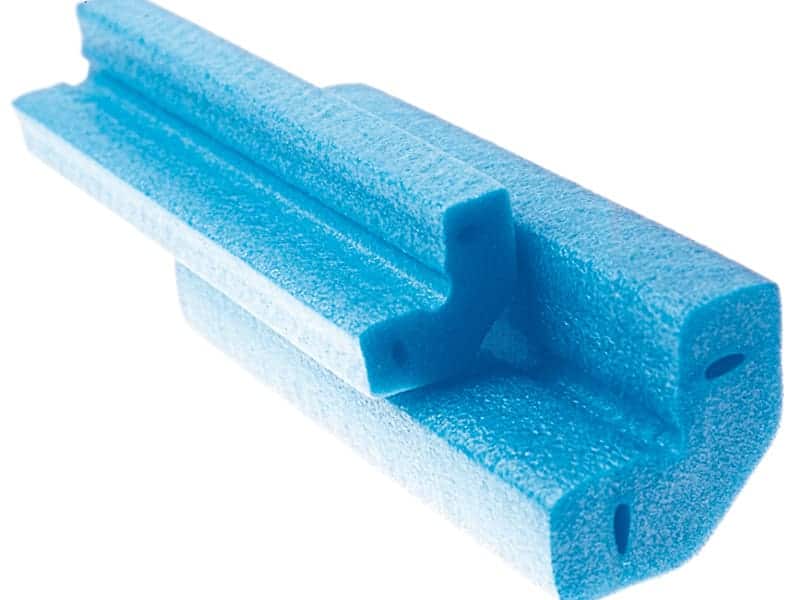

embalaje perfil espuma system 3

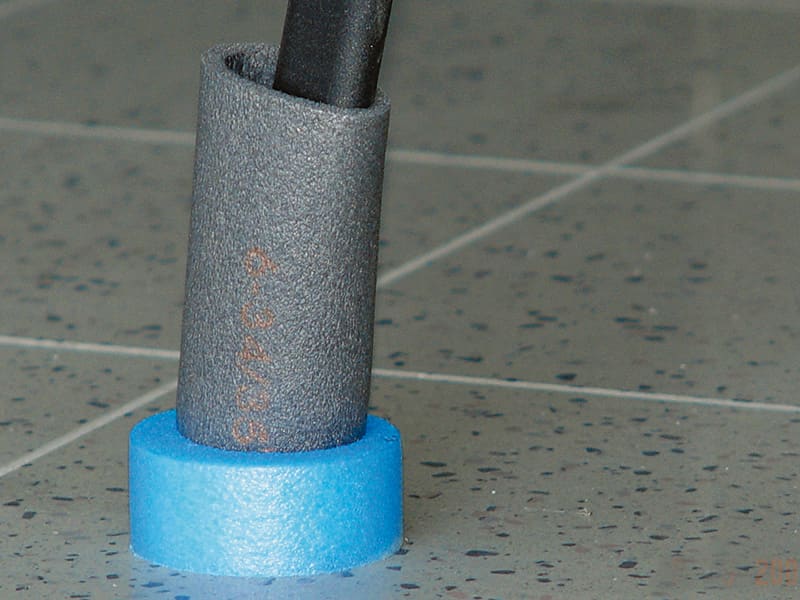

embalaje perfil espuma tubular 2

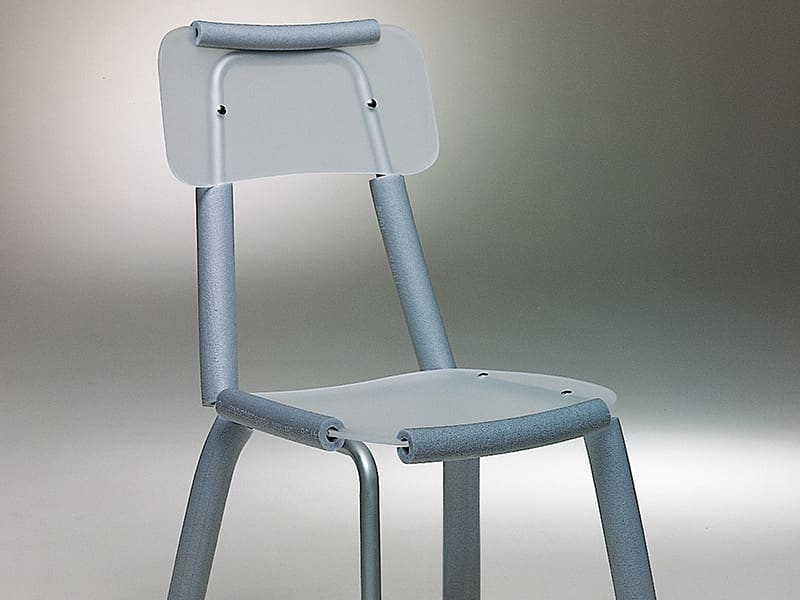

embalaje perfil espuma tubular 3
embalaje perfil espuma en U 1
embalaje perfil espuma en U 2

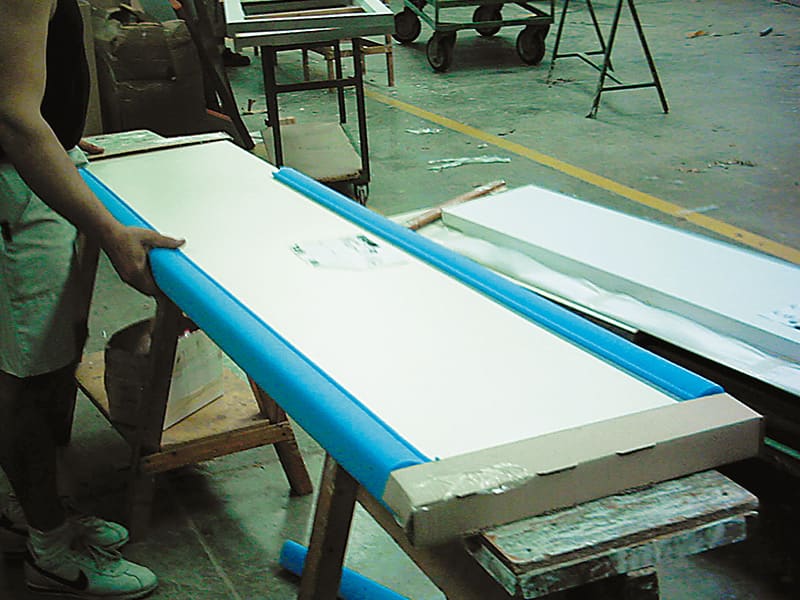

embalaje perfil espuma U 3
embalaje perfil espuma U Aleta 1

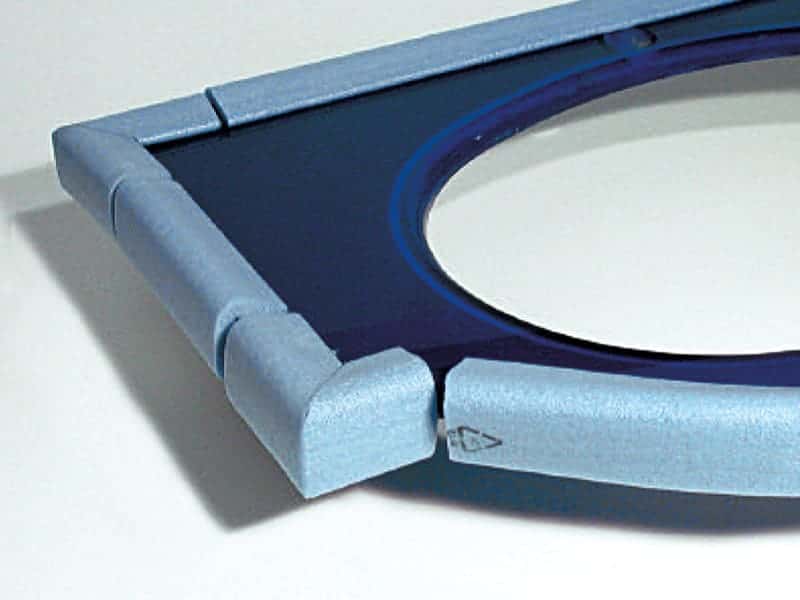

embalaje perfil espuma U interno 2
embalaje perfil espuma U interno 3

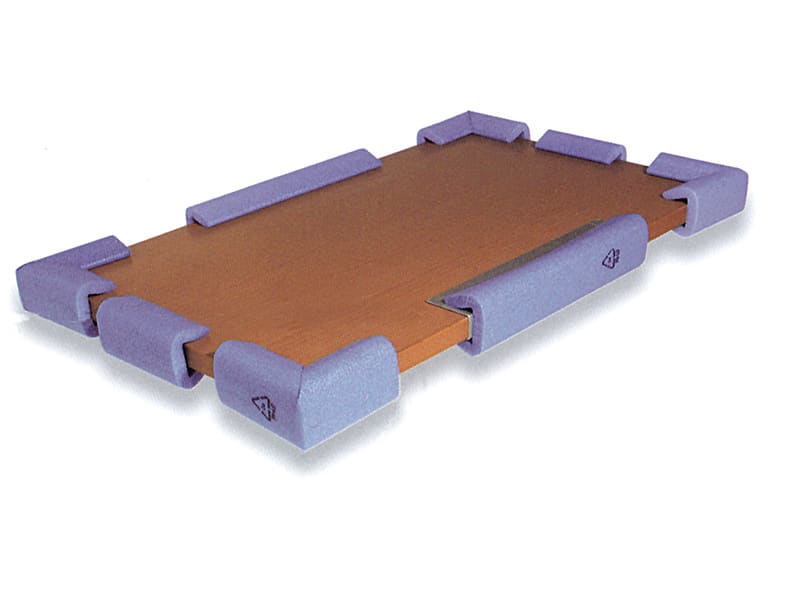

embalaje perfil espuma U interno 4

Do you want to know the price of this product?

Request information free of commitment of Foam profiles
Yes, I would like

WANT TO SEE PACKAGING SOLUTIONS in Foam profiles FOR YOUR SECTOR?

icono embalaje sector electronica brafim

ELECTRONICS AND HOME APPLIANCES

icono embalaje sector cosmética brafim

PHARMACY AND COSMETICS

icono embalaje sector artes gráficas brafim

GRAPHIC ARTS AND EXHIBITORS

icono embalaje sector Vidrio y cerámica brafim

GLASS, CERAMICS AND SANITARY APPLIANCES

icono embalaje sector automocion brafim

AUTOMOTIVE

icono embalaje sector mobiliario y decoración brafim

FURNITURE AND DECORATION INDUSTRY

icono embalaje sector maquinaria brafim

MACHINERY AND MECHANICAL ELEMENTS

icono embalaje sector ecommerce brafim

E-COMMERCE

icono embalaje Otros sectores m

OTHER INDUSTRIES

Technical Data of Foam profiles

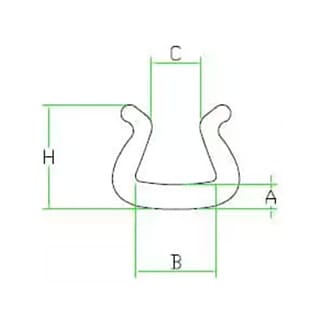

Polyethylene U-Shape Foam Profile

Code Description A B C H m.l/box Scheme
A707 Internal U-profile 08-12 D28/32 Coil 06 mm ± 2 11 mm ± 2 04 mm ± 3 28 mm ± 3 550 Esquema Embalaje protección Perfil espuma forma de U
A556 Internal U-profile 05-15 D28/32 08 mm ± 2 16 mm ± 3 05 mm ± 3 28 mm ± 3 520
A709 Internal U-profile 10-20 D28/32 11 mm ± 2 20 mm ± 3 10 mm ± 3 35 mm ± 3 450
A557 Internal U-profile 15-25 D28/32 11 mm ± 2 24 mm ± 3 13 mm ± 3 37 mm ± 3 350
A701 Internal “U” profile 20-35 esp.8mm D28/32 8 mm ± 2 34 mm ± 3 17 mm ± 4 37 mm ± 3 330
A558 Internal U-profile 20-35 D28/32 12 mm ± 2 35 mm ± 3 17 mm ± 4 48 mm ± 3 250
A559 Internal U-profile 30-45 D28/32 13 mm ± 2 45 mm ± 3 25 mm ± 5 48 mm ± 3 200
A714 Profile “U” internal 30-40 esp.20mm D28/32 20 mm ± 2 39 mm ± 3 23 mm ± 5 65 mm ± 3 130
A702 Internal “U” profile 40-60 esp.20mm D28/32 20 mm ± 2 59 mm ± 3 32 mm ± 5 63 mm ± 3 100
A560 Internal U-profile 45-65 D28/32 14 mm ± 2 65 mm ± 3 35 mm ± 5 64 mm ± 3 140
A561 Internal U-profile 60-85 D28/32 14 mm ± 2 84 mm ± 3 42 mm ± 8 65 mm ± 3 120
A562 Internal U-profile 80-100 D28/32 20 mm ± 2 96 mm ± 3 60 mm ± 10 65 mm ± 4 80
A576 Omega U-profile D28/32 11 mm ± 2 47 mm ± 3 72 mm ± 3 120

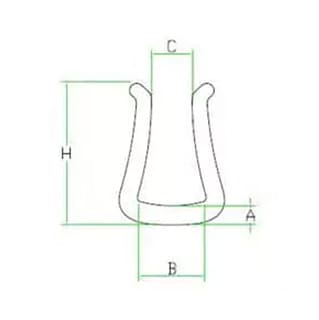

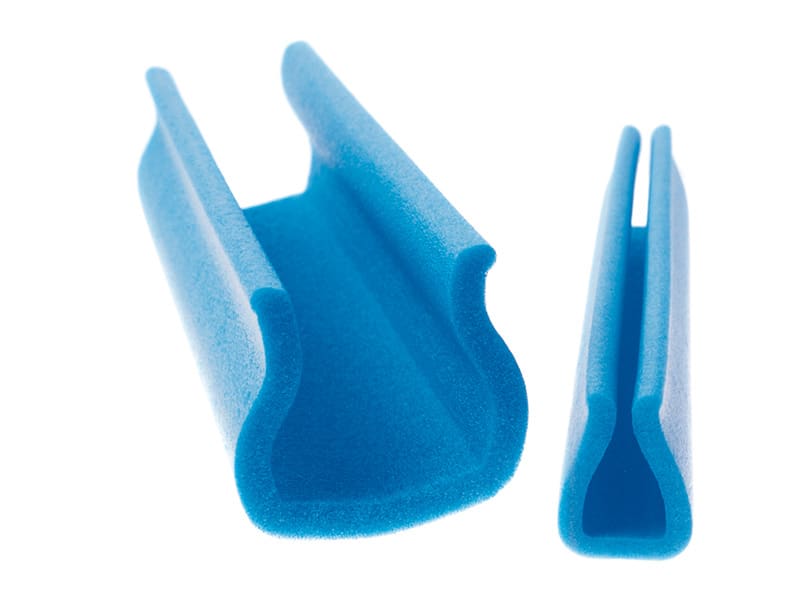

U-shaped Foam Profile with Polyethylene Fin

Code Description A B C H m.l/box Scheme
A500 Profile “U” int. 28 fin 85 esp. 28 D28/32 28mm ± 2 30 mm ± 3 15 mm ± 5  90 mm ± 5 84 Esquema Embalaje protección Perfil espuma forma de U con aleta
A715 U” profile int. 35 fin 80 D28/32 15 mm ± 2 34 mm ± 3 15 mm ± 5 85 mm ± 5  130
A580 Profile “U” int. 72 fin 120 D28/32 18 mm ± 2 77 mm ± 5 30 mm ± 15 120 mm ± 5 60

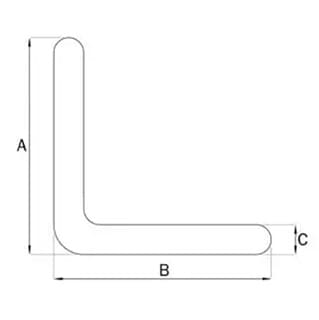

Polyethylene L-Shaped Foam Profile

Code Description A B C m.l/box Scheme
A508 Profile L 50×50 esp.6mm D28/32 50 mm ± 2 50 mm ± 2 6 mm ± 1 550 Esquema Embalaje protección Perfil espuma forma de L
A509 L-profile 75×75 th.10mm D28/32 75 mm ± 3 75 mm ± 3 10 mm ± 1 260
A719 L-profile 80×80 th.20mm D28/32 80 mm ± 3 80 mm ± 3 20 mm ± 2 150
A720 L-profile 90×90 th.30mm D28/32 90 mm ± 3 90 mm ± 3 30 mm ± 2 90

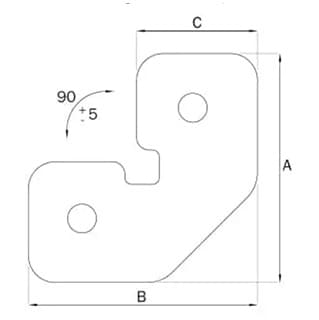

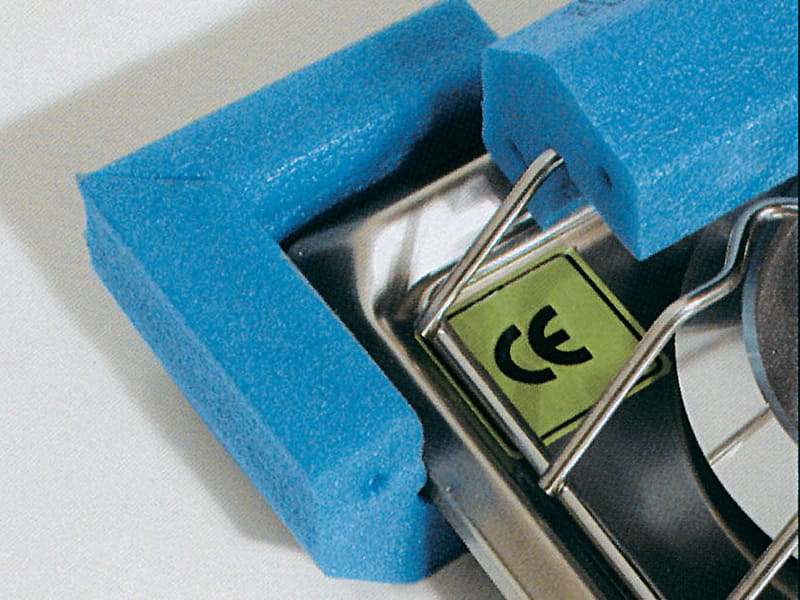

Nomapack System foam protection profile

Code Description A B C m.l/box Scheme
A521 System profile 50×50 20mm thick D28/32 52 mm ± 2 52 mm ± 2 20 mm ± 1 230 Esquema Embalaje protección perfil espuma Nomapack System
A522 Profile system 65×65 esp.30mm D28/32 63 mm ± 2 63 mm ± 2 30 mm ± 1 160
A523 System profile 80×80 x 80 x 40mm D28/32 80 mm ± 3 80 mm ± 3 40 mm ± 2 100
A524 System profile 95×95 system profile 50mm D28/32 95 mm ± 3 95 mm ± 3 50 mm ± 2 68

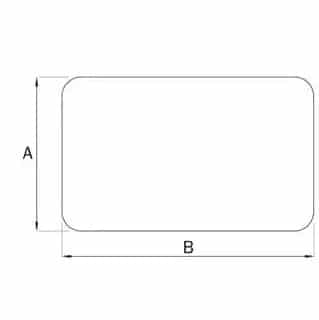

Polyethylene rectangular profile

Code Description A B m.l/box Scheme
A724 Rectangular profile 50 mm thick 10mm D28/3 10 mm ± 2 50 mm ± 2 660 Esquema Embalaje protección perfil rectangular espuma Polietileno
A725 Rectangular profile 50 mm thick 20mm D28/32 20 mm ± 2 50 mm ± 2 480
A727 Rectangular profile 65 25mm thick D28/32 25 mm ± 2 65 mm ± 2 308
A726 Rectangular profile 130/150 10mm thick D28/32 10 mm ± 2 140 mm ± 10 300
A815 Square profile 50×50 D28/32 50 mm ± 3 50 mm ± 3 176
A578 Rectangular profile 50×100 D28/32 50 mm ± 3 100 mm ± 3 96

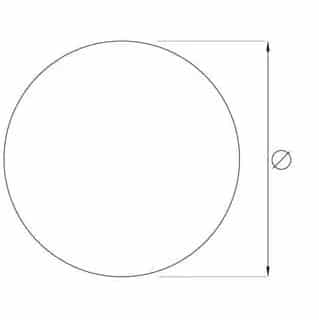

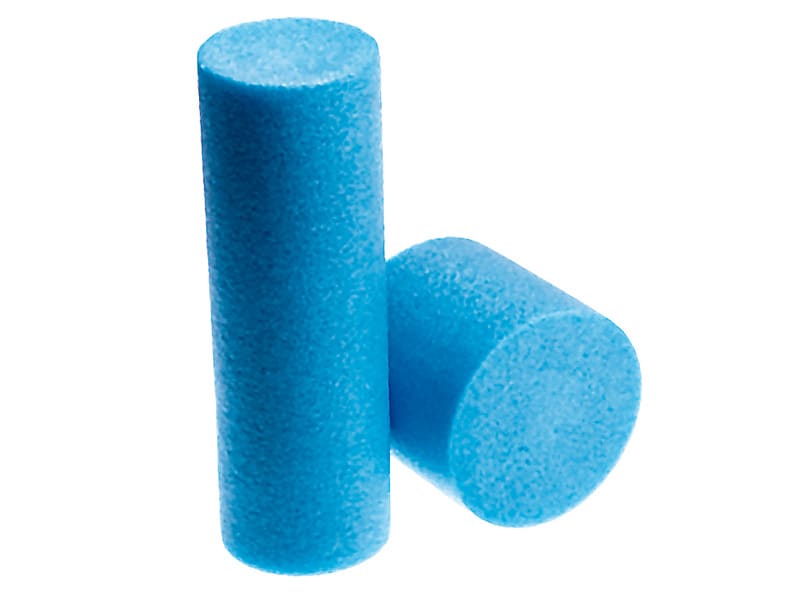

Polyethylene Foam Round Profile

Code Description Ø m.l/box Scheme
A729 Perfil cylinder diam. 50 mm D28/32 50 mm ± 3 200 Esquema Embalaje protección perfil redondo espuma Polietileno
A585 Perfil cylinder diam. 75 mm D28/32 70 mm ± 3 96
A730 Perfil cylinder diam. 100 mm D28/32 100 mm ± 3 56
